Description

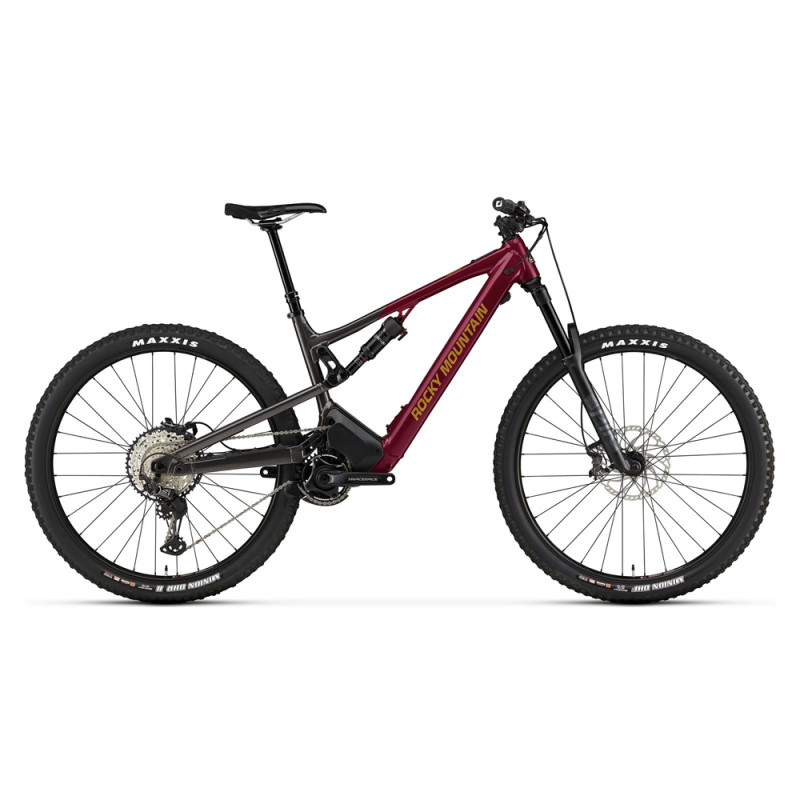

E-Bike Electric Mountain Bike INSTINCT POWERPLAY ALLOY 70 Trail

Whether you're looking to venture into the alpine environment or explore a new area, Instinct Powerplay will inspire you to go further and seek out new adventures.

Instinct Powerplay is built for exploration. Versatile geometry, compound kinematics and powered by our Dyname 4.0 drive system, you'll be riding bigger days than ever before.

TECHNICAL DATA

Frames
FORM™ Alloy. integrated display. Mid-High Pivot Smoothlink Suspension System. Press Fit BB. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry + Suspension Rate. 140mm Travel. FORM™ Alloy Rear Triangle

fork
Rock Shox Pike Select RC 150mm | 42mm offset

Front Travel
150

Shock
RockShox Deluxe Select+ | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 210x55mm | Size-Specific tune in FAQ

Rear Travel
140

Headsets
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

Stem
Rocky Mountain 35 AM | 5th Laugh | All Sizes = 40m

Handlebars
Rocky Mountain AM | 780mm Width | 25mm Rise | 9th Backsweep | 5th Upsweep | 35 Clamps

Grips
ODI Elite Pro Lock On

Brakes
Shimano XT Trail 4 Piston | Metal Pads | F: Shimano RT66 203mm | A: Shimano RT66 203mm

Shifters
Shimano XT

Rear Derailleur
Shimano XT

Cranks & Chainring
Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm

Bottom Bracket
FSA BB89.5 24mm

Boxes
Shimano SLX 10-51T

Chain
Shimano M7100

Front hub
Rocky Mountain Sealed Boost 15mm

Rear Hub
DT Swiss Hybrid 370 Boost 148mm

spokes
F : DT Swiss Champion 2.0 | A : DT Swiss Alpine 2.3/2.0

rem
WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape | Valves Incl

Tires
F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | A: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready |

Seatpost
Race Face Aeffect R Dropper 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG - XL = 175mm

saddle
WTB Volt Race 142

Drive System
Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 700w Peak Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency Class 1 eMTB System | Designed in Canada

Battery
720Wh Removable Integrated Li-Ion | xxx g

remote
Rocky Mountain Micro Remote

Display
Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration

Weight
52.8 LBS|24 KGS
