Description

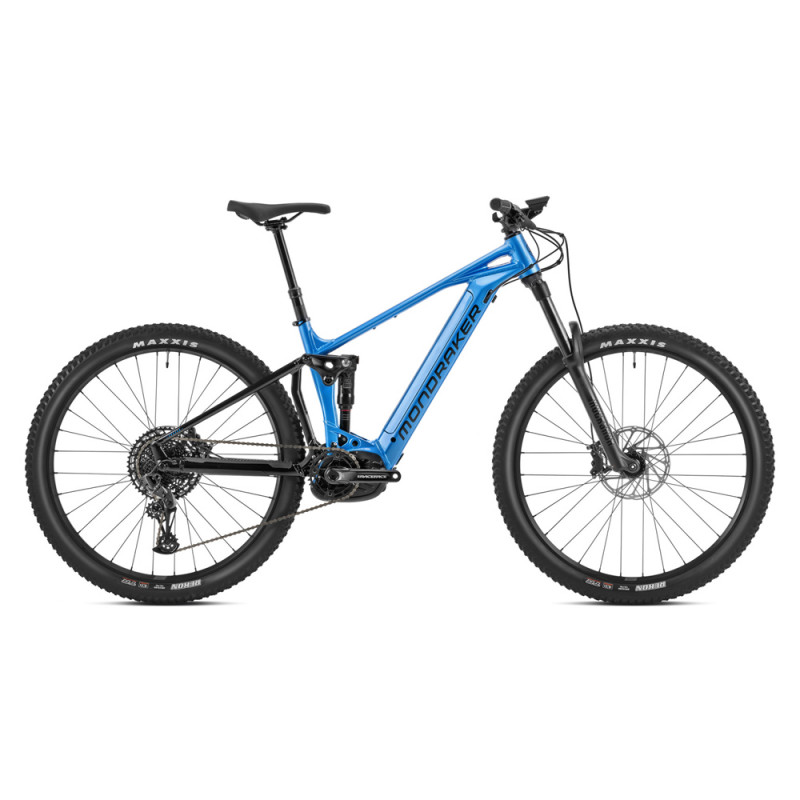

E-Bike Electric Mountain Bike CHASER 29 All Mountain Enduro

THE CHASER IS THE BEST CHOICE FOR RIDERS WHO WANT TO DEBUT IN THE WORLD OF ELECTRIC BIKES WITH ALL THE GUARANTEES.
CHASER is the best choice for riders who want to make their debut in the world of electric bikes with all the guarantees. The Bosch Performance Line CX Smart System motor, with the new Mini Remote wireless remote control, the System Controller and the Intuvia 100 display, allows you to take advantage of a natural ride with all the possibilities thanks to its 4 assistance modes. Its performance is endless thanks to the RockShox 35 Silver TK fork and Deluxe Select R shock from the same brand; to the SRAM SX Eagle 12-speed drivetrain; the Formula wheels with 2.9" thick Maxxis Rekon tyres; the SRAM DB8 brakes and ONOFF components.

TECHNICAL DATA

Chassis
Chaser Alloy 6061 Stealth Evo, e-Bike optimized Zero Suspension system, 150 mm travel, Forward Geometry, removable internal battery, Boost 12x148 mm rear axle, tapered head tube, monobloc upper link, HHG internal cable routing, sealed bearings by MAX capacity, oversized 17mm studs, dropout integrated speed sensor, unique plastic engine covers, cushioned fender

Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Shock absorber
RockShox Deluxe Select R Debonair, 205x65mm. Settings: low speed extension, air preload. Trunnion top mount, 25x10mm bottom bushings

Shock absorber adjustment
Progressive DebonAir, light compression, linear return, 1 Token

Fork
RockShox 35 Silver TK 29, 160 mm, TurnKey, Solo Air, tapered head tube, 15x110 mm Boost axle, 35 mm steel outer tubes, 44 mm offset. Settings: Low speed compression adjust to lock out, rebound, air preload

Steering
Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, 41x30,2x7x45ºx45º upper, 51,9x40x8x45ºx45º lower

Stem
Onoff Sulfur FG 30mm 0º, Forged 6061 Alloy, 31.8mm Barbore

handlebar
Onoff Sulfur 1.0 Double Butted 6061 Alloy, Rise: 20mm, Width: 800mm, 9º Backsweep Angle, 5º Upsweep Angle, 31.8mm Barbo

Knobs
Onoff Twin, 1lock-on, 135mm

Seat post
Onoff Pija internal telescopic seatpost, diameter 31.6 mm, size S: 405x95-125 mm, size M: 458x120-150 mm, size L: 498x140-170 mm, size XL: 498x140-170 mm

Saddle
MDK e-bike black

Front brake
Sram DB8, 4-piston caliper, Centerline 200 mm one-piece brake disc w/6-bolt IS, steel-backed organic pads

Rear brake
Sram DB8, 4-piston caliper, Centerline 200 mm one-piece brake disc w/6-bolt IS, steel-backed organic pads

Brake levers
Sram DB8, lever reach adjustment using tools

Tyres
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes

Rays
NC stainless steel round

Front hub axle
Formula DC711, Boost 15x110 mm, sealed bearings, 6-bolt IS

Rear hub axle
Formula EHL148 Boost 12x148 mm, sealed bearings, 6-bolt IS

Front tyre
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Rear tyre
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

cranks
Race Face Aeffect E-Bike, 165mm

Crankset
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
