Description

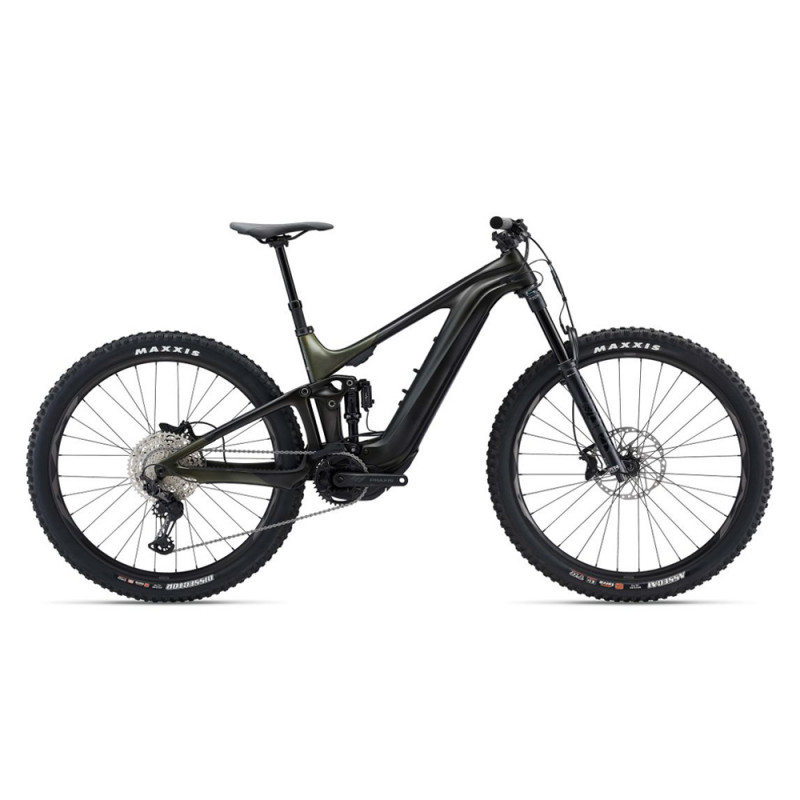

TRANCE X ADVANCED E+ 1 Trail E-bike

A new generation of trail bike that combines power, performance and total fun. With its lightweight full carbon frame, high performance suspension and new engine technology, you'll never want to finish your ride.

ADVANTAGES

Powerful and responsive
The new SyncDrive Pro motor with 85Nm of torque constantly offers pedaling support, even at low speeds. The Advanced-grade carbon frame is built to last. light and stiff, and featuring 140mm of Maestro rear suspension travel and 150mm up front: the result is a smooth ride. a racing car with excellent handling and stability; on rough and technical trails.

Adjustable and versatile
The new flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to tailor the handling to suit. to the different conditions of the route and the riding style of the rider. You can choose the low stance for fast, aggressive terrain or the high stance for a more aggressive stance. XC-oriented.

Clean cockpit
The new multi-function on/off button integrated into the RideControl Go top tube and the unit; The handlebar-mounted RideControl Ergo 3 control knob (which can be mounted on either grip), offer intuitive controls and a clean, elegant cockpit design.

TECHNOLOGIES

• A new SyncDrive Pro motor delivers 85Nm of torque, giving you the freedom to drive. to walk the paths in the way and at the time you prefer. The composite frame features 140mm of rear suspension travel (with 150mm up front) and a flip chip that lets you adjust the frame geometry to suit your riding style. The RideControl Go button on the top tube allows you to easily turn your E-Bike on/off and switch between modes. supportive of the other. In addition, the RideControl Ergo 3 controller, which is perfectly integrated on the handlebar, can be used as a driver. be mounted on both the left and right side.

• ADVANCED COMPOSITE: We used a high stiffness-to-weight ratio raw carbon to produce this innovative frame material. The frame and rear stay are handcrafted with a monocoque structure to optimize the stiffness/weight ratio and to obtain a superior quality. ultra-responsive handling. The front triangle is assembled and shaped as one piece in a manufacturing process called Modified Monocoque Construction.

• HYBRID CYCLING TECHNOLOGY: This innovative system combines electrical energy with human energy to produce an intelligent, natural and powerful riding experience on your E-Bike. It is an integrated group of technologies that includes our unit – control system, the EnergyPak battery system and the SyncDrive Pro motor.

• MAESTRO SUSPENSION TECHNOLOGY: Four strategically placed pivot points and two joints work together to create a single floating pivot to create the most advanced suspension system in the world. active, efficient and autonomous.

• ADJUSTABLE GEOMETRY: A flip chip located on the Maestro rear suspension linkage allows riders to quickly adjust frame geometry to suit the terrain and their riding style

• ENERGYPAK 625: Our most powerful battery system yet! advanced for electric bikes is; perfectly integrated into the down tube of the frame.

• ENERGYPAK PLUS: Possibility of; to install an EnergyPak Plus range extender, which provides 250Wh of additional power.

• SYNCDRIVE PRO ENGINE: The engine is built to last. co-developed with Yamaha and optimized to work with our Maestro suspension. It is now more lightweight (2.7kg) with higher torque output (up to 85Nm) and lower noise levels. significantly reduced.

• SMARTASSIST: Six intelligent sensors precisely measure the power applied to the pedals so the motor can deliver just the right amount of power. assistance to create a smooth and natural driving experience. This helps optimize energy efficiency for both the rider and the battery system.

• RIDECONTROL ERGO 3: The new control positioned on the handlebar can be adjusted to the desired level. be mounted on the left or right side for a clean cockpit layout depending on your preference. You also have the option to to addere a second control, thus having three more buttons. Buttons can be configured with the RideControl app to fully customize levels of support.

• RIDECONTROL GO: The new multi-function on/off button integrated into the top tube can be used for any ride. turn on the E-Bike quickly and easily. It can also change engine settings and dedicated support level.

• 29X2.6" COMPATIBLE: The additional frame clearance allows you to run high-volume tires (up to 2.6-inch diameter) for more grip and control on the trail.

• GIANT TUBELESS SYSTEM: The integration of tubeless wheels and tires offers greater efficiency, comfort and control thanks to a more flexible system. intuitive and reliable.

• RIDECONTROL APP: RideControl Ergo connects in RIDECONTROL mode. wirelessly with the RideControl app so your smartphone can act as a display to monitor ride data and system updates.

TECHNICAL DATA

Engine: SyncDrive Pro, 85Nm, powered by Yamaha

Sensor: RideControl Ergo 3, integrated grip

Display: RideControl GO, frame integrated LED displayANT+ Wireless display compatible

Battery: EnergyPak Smart 625, EnergyPak Plus, 250Wh range extender compatible

Frame: Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system

Fork: Fox 36 Live Valve, 150mm travel, 44mm offset, Grip2 damper, Boost 110x15QR, electronic adaptive suspension, e-bike integrated, e-bike integrated

Shock absorber: Fox Float X Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated

Handlebar: Giant Contact 35 Trail, 35x780mm

Grips: Giant Tactal Pro-E, single lock-on

Stem: Giant Contact SL 35

Seatpost: Giant Contact Switch, dropper, 30,9mm (S:125, M:150, L/XL:170)

Saddle: Giant Romero, Neutral

Pedals: Flat pedal

Shifters: Shimano Deore XT

Front Derailleur: MRP HD2 co-molded chain guide

Rear Derailleur: Shimano Deore XT, 12-speed, Shadow+

Brakes: Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 203mm

Brake controls: Shimano Deore, BL-MT6100

Sprocket set: Shimano HG-M6100, 10-51T, 12-speed

Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized

Crankset: Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor = 168, XS/S:160, M/L:165 , XL:170)

Rims: Giant AM 29", Tubeless ready, 30mm inner width

Hubs: Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle

Spokes: Sapim E-Lite [r] Race [f]

Tyres: Maxxis Assegai 29x2.6" foldable, Tubeless, EXO, 3c MaxxTerra[F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 120tpi 3C [R]

Extra: Tubeless kit (liquid, valves, levers, manual, tool)Inner tube supplied

Lighting system: Optional:- Giant Recon series e-bike lights available and direct connectable
