Reduced price

Description

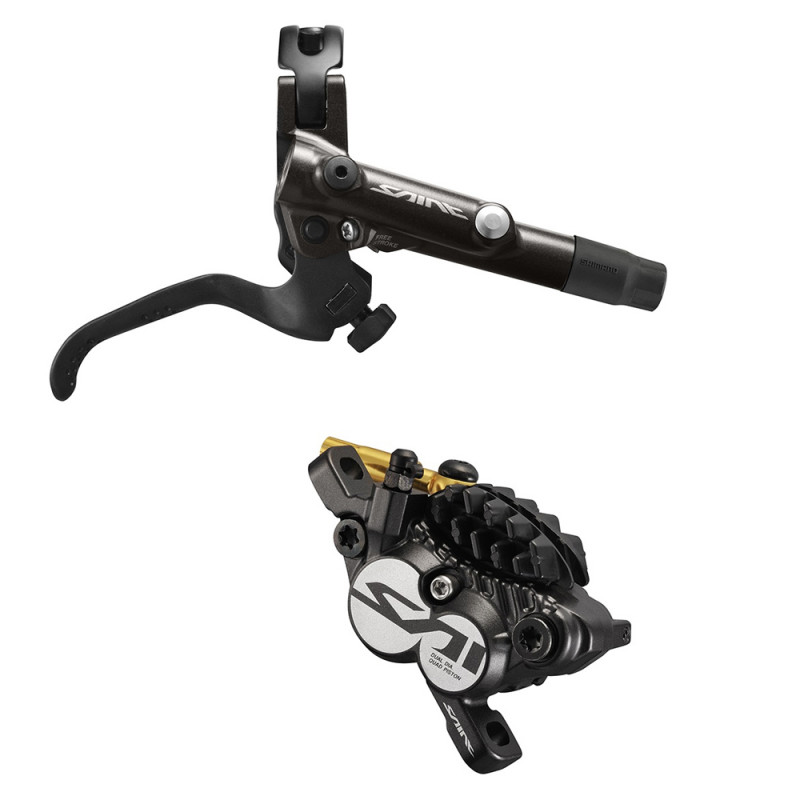

SAINT PURE GRAVITY M820 + M820-B

SHIMANO SAINT - Hydraulic disc brake lever - I-SPEC B clamp - SERVO WAVE ACTION

The best gravity riders in the world rely on SHIMANO SAINT brakes for excellent stopping power and smooth modulation whatever the conditions. For safe braking on the most difficult terrains. bumpy terrain, the BL-M820 levers have a textured finish, feature toolless reach adjust, free travel adjust, and compatibility with other gears. I-SPEC B.

FEATURES

• Ergonomic non-slip lever
• Servo Wave lever plus; light and more; short
• Tool-free idle stroke and travel adjustment
• I-spec compatible
• Weight: 103.2 g

TECHNICAL DATA

No. MODEL
BL-M820-B
SERIES
SAINT M820 Series
Color
Series color
Average weight
103.2 *
Notes
* Single item weight
Brake hose color (kit)
Black - White
Brake hose (Kit)
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Pipe joint
Straight
Reg. empty run
YES
Bleeding with funnel
YES
Spec. J-Kit (for OEM)
YES
Dim. lever (finger)
2
Oil
SHIMANO mineral
Lever travel adjustment_Without tools
YES
Recommended brake caliper
BR-M820
SERVO WAVE
YES
Compatible shift lever attachment_Band
YES
Compatible shift lever attachment_I-SPEC B
YES
Clamp_Clamp open
YES

SAINT - ICE TECHNOLOGIES - 4 pistons - Hydraulic disc brake caliper

For descents and gravity trails, the SAINT hydraulic disc brake features a rigid caliper, 4 ceramic pistons and an integrated ICE TECHNOLOGIES heat management system.

FEATURES
• Heat management with ICE TECHNOLOGIES
• High power caliber with 4 ceramic pistons
• Easy and clean bleeding
• One-way bleed brake caliper
• Bleeding funnel tool
• Pad: H01A resin/H03C metal
• Weight: 306 g (resin pad with radiating fin)

TECHNICAL DATA

No. MODEL
BR-M820
SERIES
SAINT M820 Series
Colour
Series color
Average weight
306 ** (with cooling fin)
Notes
** Single item weight
Brake caliper compatible with ICE TECHNOLOGIES pad
YES
Brake hose color (kit)
Black | White
Brake hose (Kit)
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Brake caliper fixing pin_Anti-loosening method
Snap ring
Brake caliper fixing pin_Dim. tool
5 mm
Pipe joint
Banjo
Mount type
Pin Type
ONE WAY BLEEDING
YES
Pad assembly
Pad axis
Piston
4
Recommended brake lever
BL-M820
Recommended disc brake rotor
SM-RT99 SM-RT86
Spec. J-Kit (for OEM)
YES
Oil
SHIMANO mineral
Dimensions compatible with brake rotor_140 mm (SS)
YES
Dimensions compatible with brake rotor_160 mm (S)
YES
Dimensions compatible with brake rotor_180 mm (M)
SI
Dimensions compatible with rotor of the f
