Description

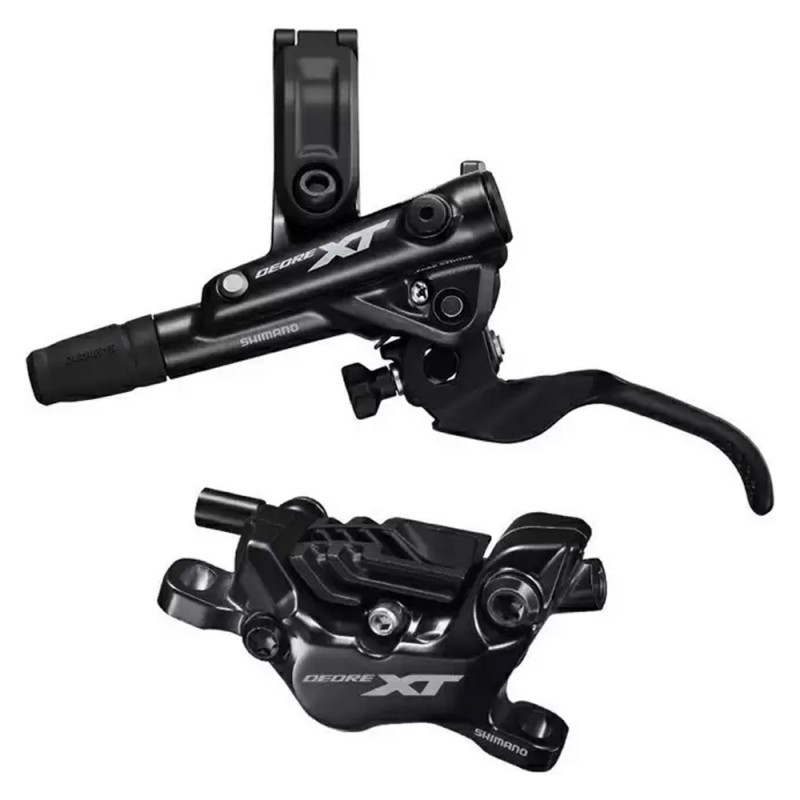

DEORE XT M8120 + MB100-L

SHIMANO DEORE XT - Hydraulic disc brake lever - I-SPEC EV clamp

With weight reduction and stopping power tailored to the demands of cross-country riding, the SHIMANO DEORE XT BL-M8100 brake lever provides intuitive modulation that will allow you to brake effortlessly. to explore your limits with confidence.

FEATURES

• Intuitive and versatile braking allows you to focus on the track
• Optimized lever axes position with additional contact point and refined ergonomics
• Greater flexibility; and optimized dashboard configuration
• I-SPEC EV
• High rigidity
• Of 10% more stiffer than M8000, even with high temperatures
• Engage brakes more; rapid with more idle stroke; short
• Rider-tuned regulation
• Lever travel adjustment without tools
• Adjustment of the idle stroke

TECHNICAL DATA

No. MODEL
BL-M8100
SERIES
DEORE XT M8100 Series
Color
Series color
Average weight
392 (BR-M8100) 410 (BR-M8120)
Brake hose color (kit)
Black
Brake hose (Kit)
SM-BH90-SBM
Brake type
Hydraulic disc brake
Pipe joint
Straight
I-SPEC EV compatible shift lever mount
YES
Reg. empty run
YES
Bleeding with funnel
YES
Spec. J-Kit (for OEM)
YES
Dim. lever (finger)
2
Oil
SHIMANO mineral
Lever travel adjustment_Without tools
YES
Recommended brake caliper
BR-M8100 BR-M8110 BR-M8120
SERVO WAVE
YES
Compatible shift lever attachment_Band
YES
Clamp_Clamp open
YES
Gear lever rotation angle adjustment range (I-SPEC EV ; degrees)
20

4 Pistons - ICE TECHNOLOGIES - Hydraulic disc brake caliper

The SHIMANO DEORE XT M8120 brake caliper offers consistent and reliable braking performance in all conditions. The 4-piston disc brake caliper offers great control and instills confidence on descents.

FEATURES
• The higher modulation offers more control
• Retraction more quick release of the pistons
• The high braking power offers greater safety and control on descents
• Reduces disc brake rotor oscillation noise and increases braking power by 10% (compared to M8000)
• Four pistons
• Quick and easy assembly
• Banjo fitting and internal sheath routing

TECHNICAL DATA

No. MODEL
BR-M8120
SERIES
DEORE XT M8100 Series
Color
Series color
Average weight
410
Brake caliper compatible with ICE TECHNOLOGIES pad
YES
Brake hose color (kit)
Black
Brake hose (Kit)
SM-BH90-SBM
Brake type
Hydraulic disc brake
Brake caliper fixing pin_Anti-loosening method
Snap ring
Brake caliper fixing pin_Dim. tool
5 mm
Pipe joint
Banjo
Mount type
Pivot type
Pad assembly
Pad axis
Piston
4
Recommended brake lever
BL-M8100 BL-T8100
Recommended disc brake rotor
RT-MT800
Spec. J-Kit (for OEM)
YES
Oil
SHIMANO ore
Dimensions compatible with brake rotor_140 mm (SS)
YES
Dimensions compatible with brake rotor_160 mm (S)
YES
Compatible dimensions with brake rotor_180 mm (M)
YES
Compatible dimensions with brake rotor_203 mm (L)
YES
Pad_Option 1
D03S resin (without fin)
Pad_Option 2
Metal D02S (without flap)
Pad_Standard 1
N03A resin (with flap)
Pad_Standard 2
N04C metal (with flap)
