Description

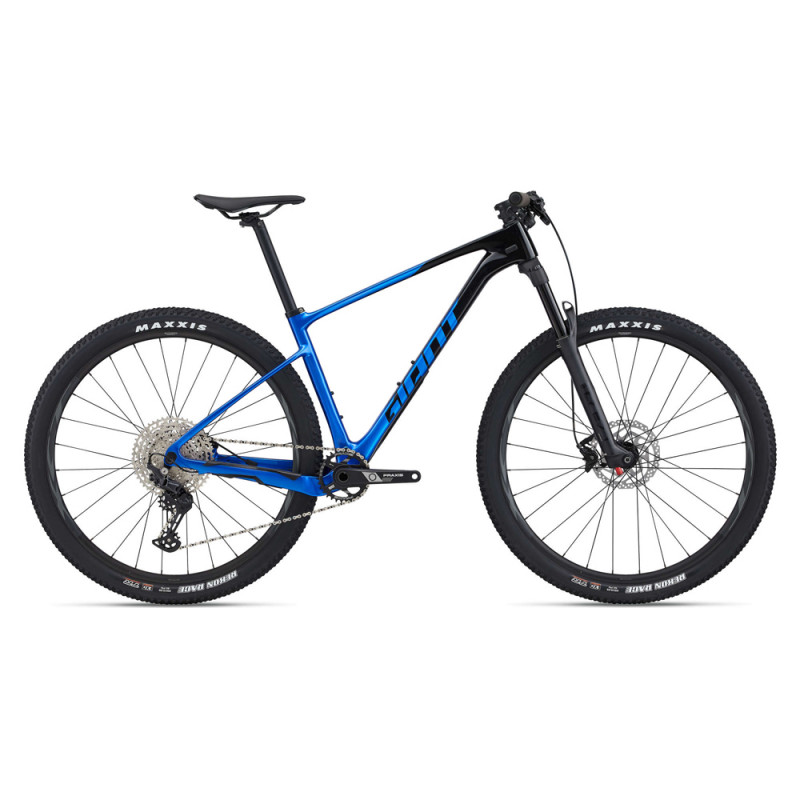

XTC ADVANCED 29 3

Quality & responsive handling and maximum efficiency on fast and technical singletrack. This lightweight carbon-crafted hardtail is designed to last for years. a great choice for xc racing or hunting for a new KOM.

Light and responsive
The Advanced-grade carbon frame gives XC racers a significant competitive advantage uphill, during acceleration and sprinting.

XC efficiency
The frame is; designed with an excellent stiffness-to-weight ratio: this translates into ultra-efficient pedaling power and precise handling on any type of trail.

Reliable
Each frame is; customized according to your specific dimensions. Carbon lay-up schedules are designed to optimize the reliability of the carbon. general and to produce a quality; of driving more; smooth on XC terrain.

TECHNOLOGIES

ADVANCED COMPOSITE TECHNOLOGY
High-performance raw carbon fiber is used to produce custom composite material in Giant's composite plant. Extremely light, stiff and compliant, these handcrafted frames feature the following materials and processes.
1. MATERIAL High performance raw carbon based material for a high stiffness ratio. / weight.
2. RESIN High Performance Formula resin provides a high level of void minimization (fewer bubbles) while maintaining exceptional strength characteristics. Vibration-absorbing particles are added to help disperse road-induced impacts. assembled and printed as one continuous piece. This half front is then bonded to the seatstays and chainstays in a secondary process. The modified monocoque eliminates the more complex composite sheet. exterior to reduce weight without compromising quality; driving, resistance or stiffness.

OVERDRIVE
It's Giant's original oversized steer fork technology. Designed to provide precise front-end steering performance, the system's oversized headset bearings (1 1/4" lower and 1 1/8" higher for street, 1 1/2" lower and 1 1/8" higher for mountain) and tapered shape and the steerer tube work together to provide a rigidity; optimal steering

TUBELESS SYSTEM
Practical and reliable tire system that offers greater effciency, comfort and control.

TECHNICAL DATA

Frame
Advanced-Grade Composite, 12x148mm thru-axle

Fork
Giant Crest 34 RRL, 100mm , remote lockout

Shock
N/A

Handlebar
Giant Contact SL XC Flat, 780x31.8mm

Grips
Giant XC Pro S:32mm, M:32mm, L:34mm, XL:34mm

Stem
Giant Contact S:60mm, M:70mm, L:80mm, XL:90mm

Seatpost
Giant Connect, 30.9x400mm

Saddle
Giant Approach

Pedals
N/ A

Shimano Levers
Shimano Deore, 1x12

Front Derailleur
N/ A

Rear Derailleur
Shimano Deore

Brakes
Shimano BR-MT410, hydraulic , Shimano RT-26 rotors [F]180mm, [R]160mm

Brake controls
Shimano MT-401

Sprocket set
Shimano Deore, 11x51

Chain
KMC X-12

Crankset
Praxis Cadet M24, Boost, 32t

Bottom bracket
Praxis, press fit

Rims
Giant XCT 29” alloy, 25mm inner width

Hubs
alloy, sealed bearing

Spokes
Sapim

Tyres
Maxxis Recon Race 29x2.25, foldable, TLR, EXO, tubeless

Extra
tubeless prepared, 2.25" max tire size, 38t max chainring size

in the down tube.

BENEFITS

A 29-inch front wheel and 27.5-inch rear wheel work together to deliver nimble handling and agility. of absolute level even on the most difficult terrains; technicians. The completely renewed frame features a new geometry with a wider rear end. short and a longer reach; long. The new units – control options include RideControl Go, integrated into the top tube, and RideControl Ergo 3, attached to the handlebar near the grips. In addition, the flip chip system allows you to adjust the geometry of the frame according to your riding style and the terrain you're riding.

TECHNOLOGIES

ALUXX SL Aluminum Technology
Hybrid Cycling Technology
Maestro Suspension Technology
SyncDrive Pro
PedalPlus 6-Sensor Technology
Energypak
RideControl Ergo 3
RideControlGo

TECHNICAL DATA

Motor
SyncDrive Pro, 85Nm, powered by Yamaha

Sensor
RideControl Ergo 3, integrated grip

Display
RideControl GO, frame integrated LED displayANT+ Wireless display compatible

Battery
EnergyPak Smart 625Wh Compatible with EnergyPak Plus range extender (only for sizes M, L and XL)

Frame
ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, UDHTM derailleur hanger

Fork
RockShox Domain R 29er, 170mm travel, 15x110 Boost, Maxle Stealth, E-bike Approved

Shock
Fox Float DPS Performance, EVOL Large Volume sleeve, 2-position lever, 205x62.5mm Trunnion mount, custom tuned

Handlebar
Giant Contact Trail, 35x800mm

Grips
Giant Tactal Pro-E, single lock-on

Handlebar Stem
Giant Contact SL 35

Seatpost
Giant Contact Switch, dropper, 30,9mm (S:100, M: 125, L: 150, XL: 175)

Saddle
Giant Romero Trail

Pedals
Flat pedal

Shimano Deore
Shimano Deore

Front Derailleur
MRP 1X HD2 custom co-molded chain guide

Rear Derailleur
Shimano Deore 12-speed

Brakes
Shimano Deore BR-M4120, 4-piston, hydraulic disc, 203mm

Brake controls
Shimano Deore BL-M4100, I-spec EV

Cassette sprocket
Shimano Deore CS-M6100-12, 10-51T, 12-speed

Chain
KMC e.12 Turbo, EcoProteq, e-bike optimized

Crankset
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165)

Rims
Giant AM 29"[F] 27.5"[R], Tubeless ready, 30mm inner width

Hubs
Shimano MT410 Boost, Center-Lock , [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle

Spokes
Sapim E-Lite [r] Race [f]

Tyres
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra[F]Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown , 3C MaxxTerra Compound [R]

Extra
Tubeless kit (liquid, valves, levers, manual, tool)

Lighting system
Optional:- Giant Recon series e-bike lights available and direct connectable
